12V 500A Electroplating Rectifier 220V Single Phase Input Compact DC Power Supply for Surface Finishing Applications

Model Number : GKD12-500CVC

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Place of Origin : China

Packaging Details : strong plywood standard exporting package

MOQ : 1pcs

Delivery Time : 5-30 working days

Price : 650-900$/unit

Certification : CE ISO9001

Supply Ability : 200 Set/Sets per Month

Brand Name : Xingtongli

Contact Now

12V 500A Electroplating Rectifier 220V Single Phase Input Compact DC Power Supply for Surface Finishing Applications

This 12V 500A electroplating rectifier is designed for medium-power plating processes that require stable and controllable DC output. Suitable for applications including nickel plating, copper plating, anodizing, and metal surface treatment, it delivers reliable current performance and smooth operation throughout the production cycle. With 220V single-phase AC input, the unit is ideal for workshops and production lines where three-phase power is unavailable. The rectifier supports customized configurations such as output voltage/current, control method, cooling design, timer function, and communication interfaces to meet different process requirements.

Technical Specifications
  • Input Power: single-phase 220V AC ±10%, 50/60Hz
  • Output Capability:
    • Voltage: DC 0-12V continuously adjustable
    • Current: DC 0-500A continuously adjustable
    • Power: Max 6KW (12V *500A)
  • Regulation Accuracy: Voltage ±1%, Current ±1%
  • Efficiency: ≥85% (IGBT high-frequency soft-switching technology)
  • Cooling System: Intelligent forced air cooling (temperature-controlled variable-speed fans, low noise)
  • Protection Features: Over-voltage, over-current, short-circuit, overheating, phase loss, and input surge protection
  • Control Modes: Auto-switching between CV/CC modes; supports local keypad or remote RS485 communication (Modbus protocol)；local panel control
  • Display Interface: LED/liquid crystal screen for real-time voltage, current, and status alerts
  • Operating Temperature: -10℃ to +50℃
  • Protection Rating: IP21 (dust and drip-proof)

Key Advantages
  • Flexible Adaptation: CC/CV auto-switching ensures precise control for electroplating processes.
  • Energy Efficiency: IGBT high-frequency inversion reduces energy loss, saving 10%-15% compared to traditional SCR rectifiers.
  • Compact Design: Space-saving and lightweight, suitable for workshops or labs.
  • Smart Thermal Management: Fans adjust speed based on load temperature, balancing cooling and noise.
  • High Compatibility: Wide input voltage range (±15%) accommodates grid fluctuations.

Applications
  • Precision Electroplating: Gold/silver plating, PCB electroplating, and other current-sensitive processes.
  • Small-Scale Electrolysis: Lab-based water electrolysis, precious metal refining.
  • Surface Treatment: Anodizing, electrophoretic coating, metal polishing.
  • R & D & Education: Electrochemical experiments in universities and research institutes.

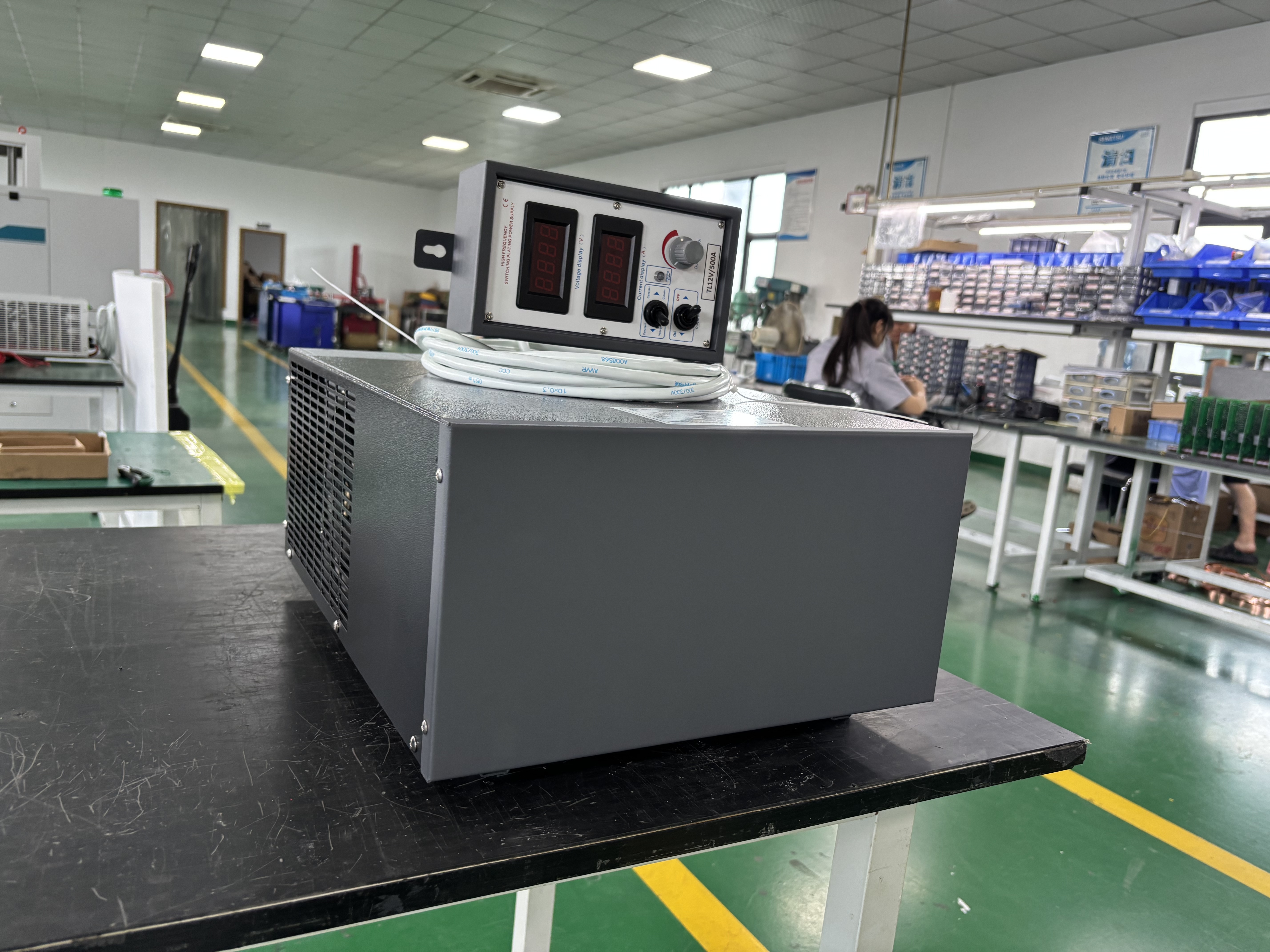

  • 12V 500A Electroplating Rectifier 220V Single Phase Input Compact DC Power Supply for Surface Finishing Applications

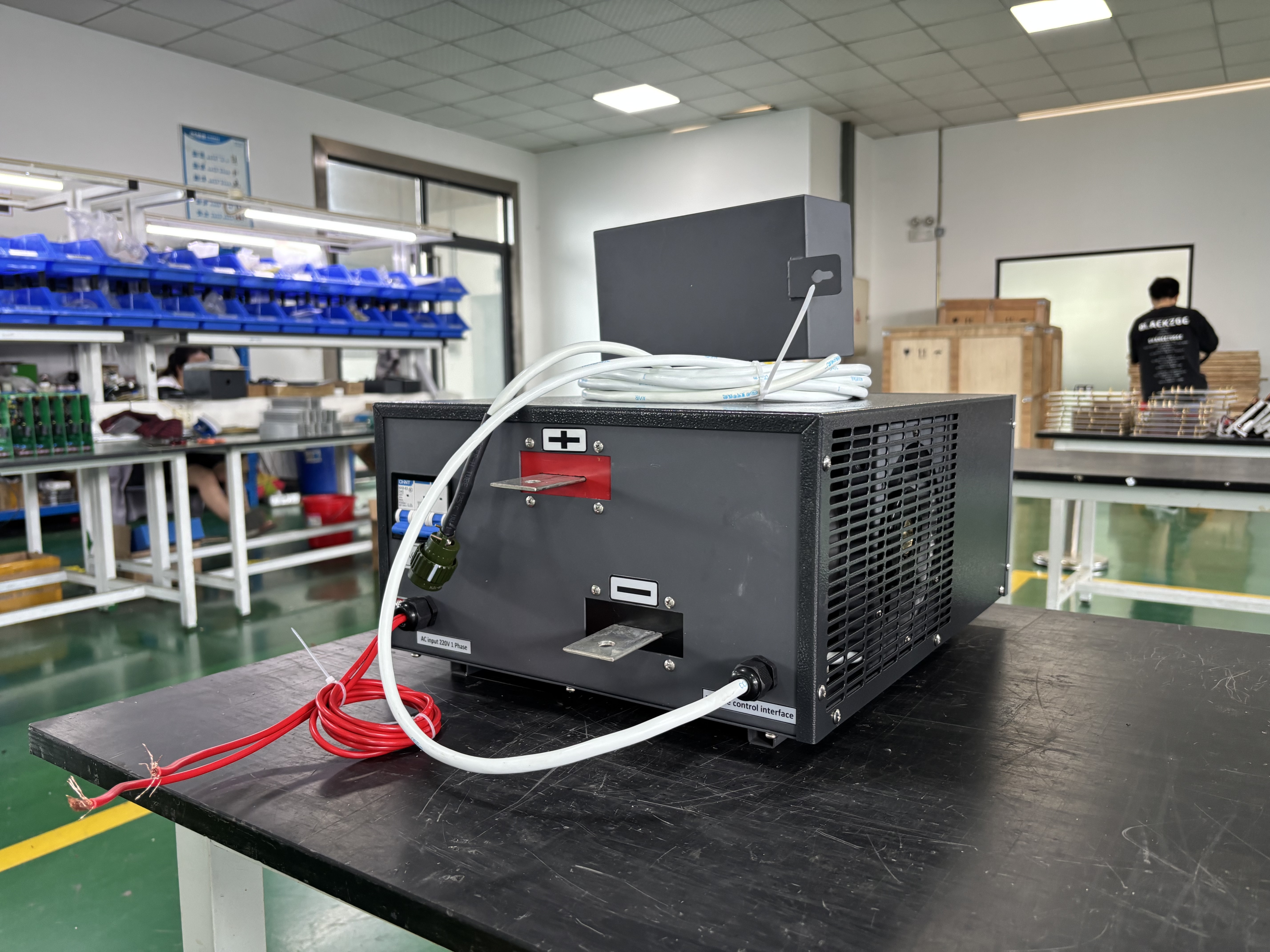

  • 12V 500A Electroplating Rectifier 220V Single Phase Input Compact DC Power Supply for Surface Finishing Applications
